Bench Power-Supply Current Limit Basics
tldrSet a bench power-supply current limit from the circuit documented startup demand, normal load, component limits, and fault tolerance, not from a universal number. With output disabled, configure voltage, polarity, limit, and protection; verify polarity at the load and prevent battery backfeed. Power an isolated low-voltage project in stages while watching current, heat, noise, odor, and behavior. Unexpected limiting calls for diagnosis, not an enthusiastic twist of the knob.
Contents

Current limiting sets a protective ceiling

A bench supply in constant-voltage operation tries to maintain the set voltage while the load draws current. When load demand reaches the configured current limit, many supplies reduce output voltage and enter a constant-current region. Exact behavior, indicators, transient response, and controls vary by model.

Read the supply manual. A current limit reduces damage risk; it does not make a short, reversed battery, wrong polarity, or hot component safe.

Know the circuit's expected current

Estimate normal startup and steady-state current from the schematic, component datasheets, operating modes, and prior verified measurements. Motors, radios, heaters, capacitive inputs, displays, and processors can draw brief peaks. A limit below legitimate startup may prevent operation; one far above the fault energy the board tolerates offers little protection.

Do not pick a universal beginner number. Set from the actual design.

Configure before connecting the project

With the output disabled or disconnected as the manual specifies, set voltage, current limit, polarity, output terminals, tracking or series modes, remote sense, and any overvoltage protection. Some supplies require temporarily shorting their output to set current; follow only the exact manufacturer procedure with rated leads.

Never short an unknown supply improvisationally. Verify display units and knob range.

Check lead polarity at the load end

Measure or verify the actual connector and clip polarity, not merely terminal colors. Inspect lead insulation, banana plugs, clips, fuses, and strain relief. Avoid loose clips that can rotate into adjacent pins.

If the project contains a battery, confirm whether external supply connection is permitted. Never backfeed, charge, or parallel a cell through a generic bench-supply setup unless the battery and charger design explicitly support it.

Start in stages

Disconnect expensive loads or socketed devices when the design permits, energize the power section, and verify rails. Add circuit sections one at a time. Keep hands clear and watch voltage, current, indicator state, temperature through safe methods, smell, noise, and visible behavior.

Use the low-voltage bench setup and a reachable output-disable control.

Interpret current limiting correctly

An unexpected constant-current indication means the circuit is demanding more than the set limit. It can result from a short, reversed component, wrong rail, startup load, wiring error, damaged IC, or simply a limit set too low. Deenergize and diagnose; do not automatically turn the knob upward until the light changes color.

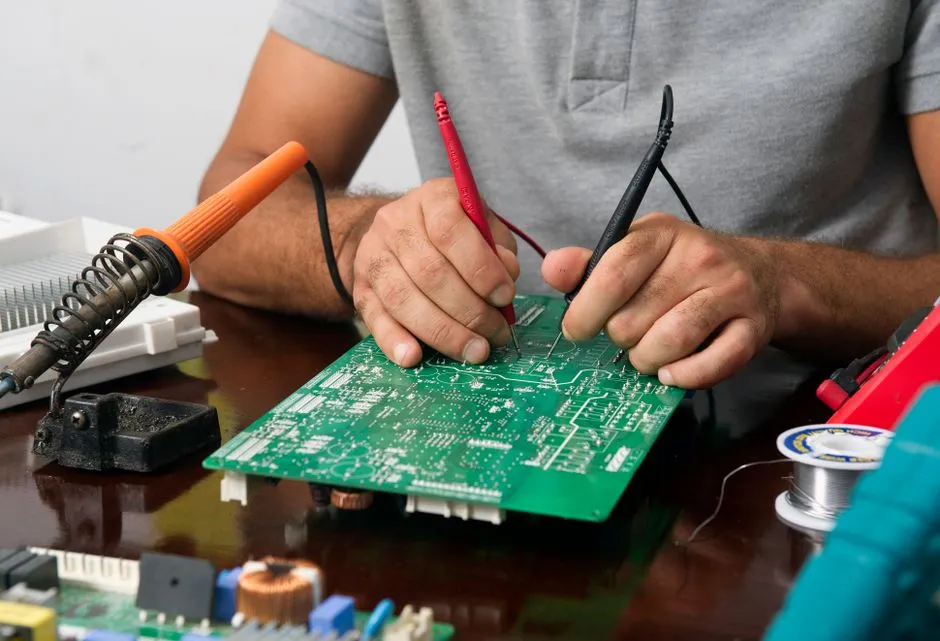

Measure supply-rail resistance only after power is removed and stored energy is handled. Use continuity testing and schematic-based isolation.

Account for capacitive startup

Input capacitors draw charging current. A supply with a tight limit may rise slowly, cycle, or interact with undervoltage lockout. Compare behavior with the circuit and supply documentation. Do not defeat protection merely to force startup; staged connection, precharge, or a different source architecture may be required in a professional design.

Verify the supply itself

For sensitive projects, check output voltage with a suitable meter, including at the load when lead drop matters. Understand earth-ground relationships: some bench outputs float, some reference chassis, and oscilloscopes or computers can create unintended ground paths.

Never assume isolation from appearance. Use manufacturer documentation and qualified design when connecting multiple instruments.

Shut down after anomalies

Disable output immediately for unexpected current, collapsing voltage, heat, smoke, odor, sound, swelling, or unstable readings. Disconnect sources and inspect before touching. Use the no-power diagnostic order rather than repeated power cycling.

A current limit is a seat belt for the circuit. It is valuable, but it does not improve the route, repair the brakes, or excuse driving into a wall.

FAQ

What current limit should I use for a breadboard project?

Use the design's expected startup and operating current plus justified margin while staying below connector, wire, trace, source, and component fault limits. There is no universal value. Calculate and measure from datasheets and known behavior. Start conservatively and investigate unexpected limiting rather than increasing the setting until the project happens to run.

Why does the supply voltage drop in current-limit mode?

The load is asking for the configured current ceiling, so a typical supply reduces voltage to hold current near that limit. This can be normal during a documented startup or evidence of a short, reversal, damage, or too-low setting. Disable output, compare expected demand, inspect wiring, and isolate sections before changing the limit.

Can I charge a lithium battery with a bench supply?

Not through a generic improvised setup. Lithium cells require chemistry-, cell-count-, temperature-, protection-, balance-, voltage-, and current-specific charging controls. A bench supply current limit is not automatically a complete safe charger. Use the exact battery maker's approved charger and protection system, and stop with any damaged, swollen, hot, leaking, or unidentified cell.
