Repair a Broken Low-Voltage Wire or Connector

Identify the wire's job and energy

Confirm the cable belongs to a known isolated low-voltage device and determine voltage, current, polarity, signal type, shielding, temperature, flex, and environmental requirements. Stop for mains cords, high-voltage leads, medical, safety, automotive restraint, pyrotechnic, battery-pack internals, or unknown wiring.

A thin wire can carry a signal, power, an antenna function, or the final thread holding a warranty together.

Find why it broke

Look for sharp bends, missing strain relief, connector movement, abrasion, pinch points, corrosion, overheating, incorrect crimp, repeated flex, or tension. Repairing the conductor without correcting the mechanical cause schedules the next break.

Document pin order, colors, shielding, twist, polarity, and routing before cutting anything.

Choose replacement materials by specification

Match conductor size and strand type, insulation voltage and temperature, flexibility, chemical resistance, color or marking, shield, twist, connector series, terminal plating, and current capability. Do not assume a wire is suitable because its diameter looks close.

Use the connector maker's terminal, crimp tool, strip length, insertion, retention, and inspection procedure.

Prefer the original termination method

A crimp connector should generally receive a correct new terminal rather than solder added to an unsuitable crimp. Solder can wick into a flexible wire and create a rigid stress point. A soldered board connection needs the documented pad, routing, and strain relief.

Never stuff bare strands into a housing or reuse a terminal whose locking lance or spring contact is damaged.

Make a controlled solder splice when appropriate

For an approved low-voltage splice, cut back to clean conductor, stagger adjacent splices where the harness permits, fit heat-shrink before joining, make a mechanically stable connection without sharp protrusions, solder with local fume capture, and avoid wicking far beneath insulation.

Insulate each conductor separately, then restore bundle support and outer protection. Adhesive-lined or environmental sealing must match the original design; trapping moisture is not weatherproofing.

Protect data and sensor wiring

Twisted pairs, coaxial cable, USB and other high-speed links, antennas, thermocouples, load cells, and sensitive sensor wires depend on impedance, twist, shielding, material, and junction characteristics. A generic splice can alter the signal. Replace the cable assembly or follow the system's exact repair method.

Inspect the board and connector

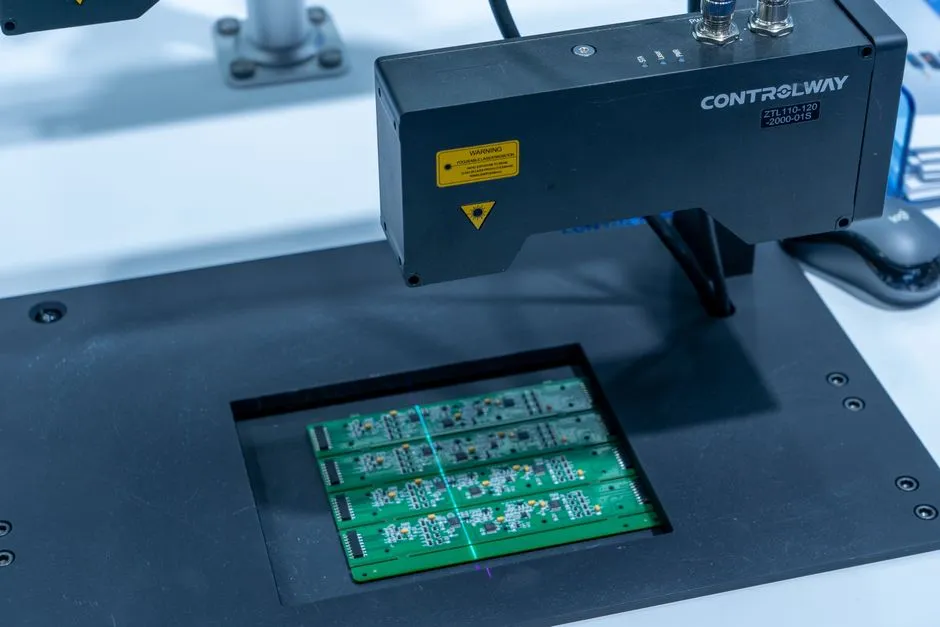

If the wire pulled from a PCB, inspect the pad, via, trace, and mounting. A new wire soldered to a lifted pad is connected mainly to optimism. Use PCB damage inspection and solder-joint criteria.

Test before power

With every source disconnected and stored energy handled, verify each intended conductor and absence of shorts to neighbors or shield using circuit-aware continuity tests. Flex gently only within the cable specification while monitoring for intermittency.

Then power the isolated low-voltage device through current limiting where suitable and test full movement, load, and connector retention.

Restore strain relief and enclosure protection

Route away from heat, sharp edges, fans, gears, and pinch zones. Refit grommets, clamps, ties, boots, shields, and covers using the original method. Do not let soldered conductors carry pull force.

A wire repair is finished when the electrical path, insulation, mechanical support, and environment are restored. If only the copper is fixed, the problem has merely changed outfits.
